Beam-Shaped Structure & Flexible Stem Magnetic Stands

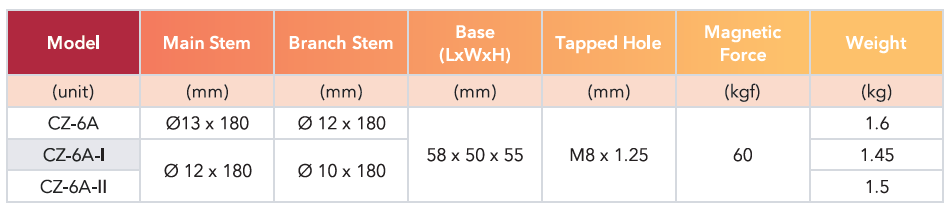

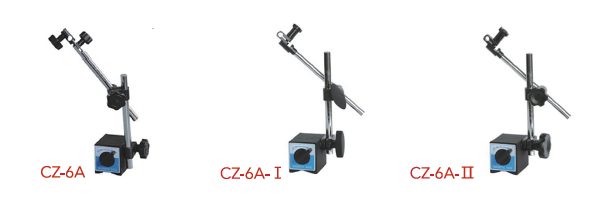

Beam-Shaped Structure

1. The main stem is fixed on the side of base.
2. Magnetic base with ON/Off switch.
3. Clamp hole: 8mm

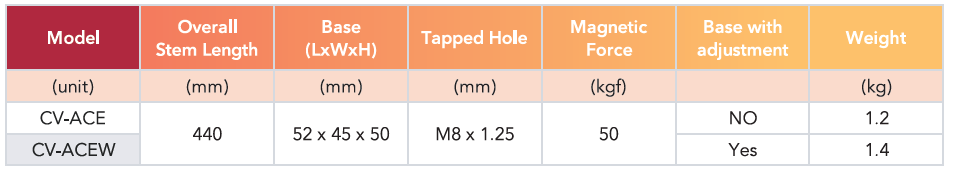

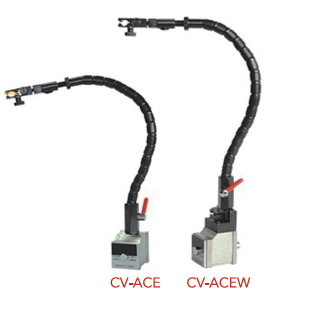

Flexible Stem I

1. Magnetic base with On/Off push button.
2. Clamp hole 8mm (option: hole 3/8")

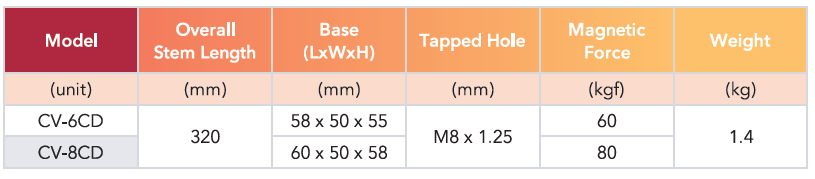

Flexible Stem II

1. Magnetic base with On/Off push button.
2. Clamp hole 8mm (option: hole 3/8")

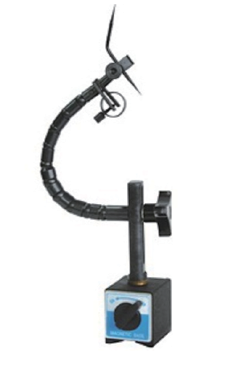

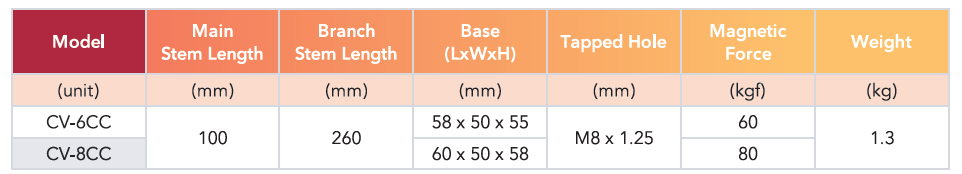

Flexible Stem III

1. Magnetic base with On/Off push button.
2. Clamp hole 8mm & 4mm (option: hole 3/8" & 5/32")
3. With fine adjustment

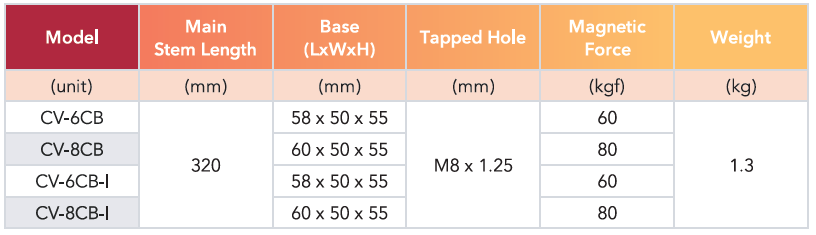

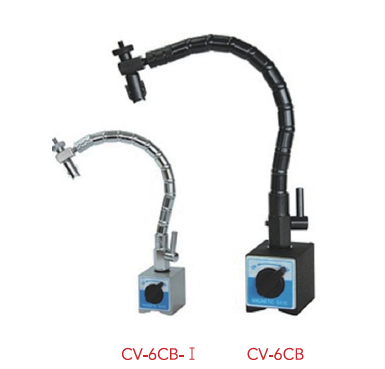

Flexible Stem IV

1. Magnetic base with On/Off switch.
2. Clamp hole accept all test indicators and normal indicators.

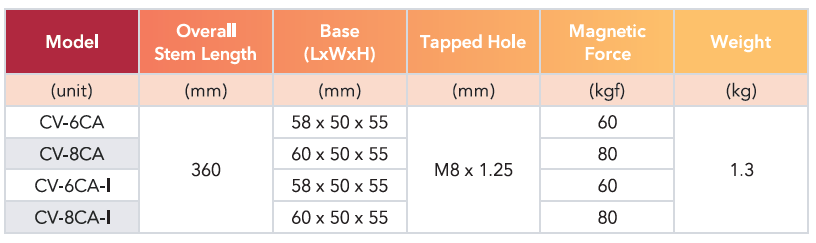

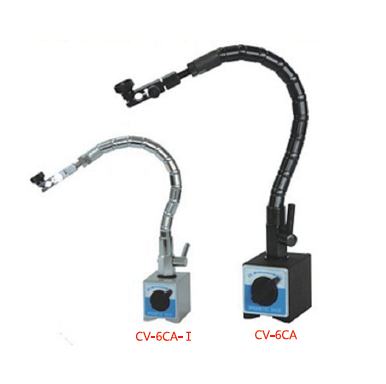

Flexible Stem V

1. Magnetic base with On/Off switch.
2. With fine adjustment.
3. Dovetail groove for test indicator.
4. Clamp hole 8mm ( optional: hole 3/8")

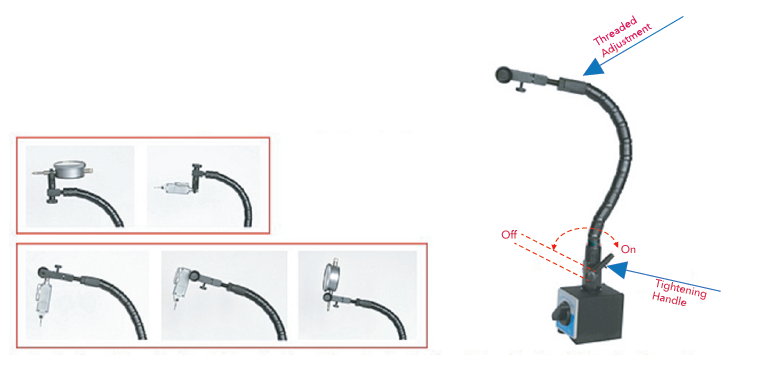

Flexible Stem Magnetic Stands-Feature

The flexible stem magnetic base is an ideal testing tool at random angle and internal hole.

Flexible stem easy reach the place which is hard for rigid stem to reach.

Flexible stem with locking lever and inching adjuster, adjustable to any position.
