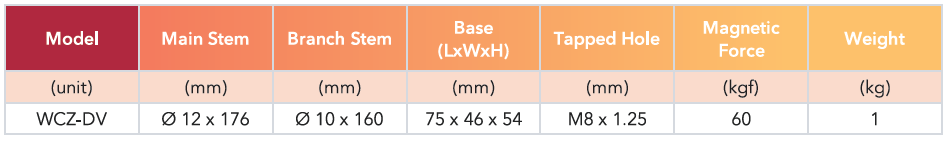

For Uneven Surface
1. Branch stem with fine adjustment.
2. Clamp hole: 8 mm & 6.5 mm (optional: hole 3/8" & 5/32")
3. For dial indicators with lug back or plain back.
4. Magnetic base for uneven surface.

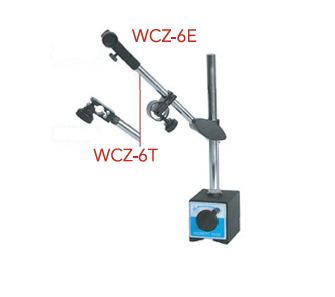

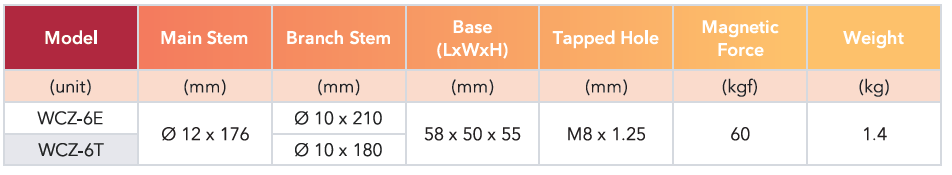

With Dovetail Groove
1.With fine adjustment.
2.The clamp hole is on top of branch stem.
3.Clamp hole: 8mm (optional: hole 3/8" )
4.Magnetic base with ON/Off switch
5.Dovetail groove for clamping a dial test indicator.

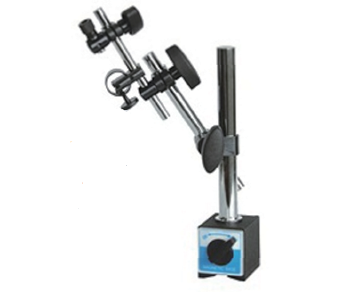

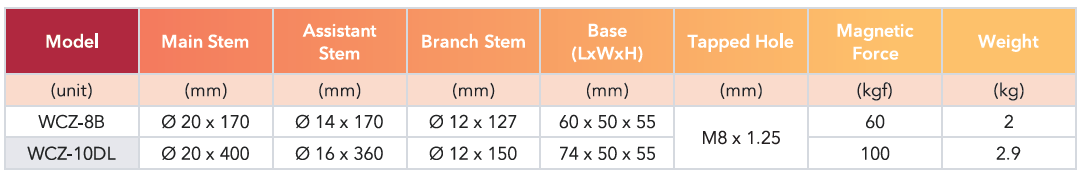

Extra Stem
1.With fine adjustment.
2.Extra stem, one main stem, one branch stem and one assistant stem.
3.For dial indicators with lug back or plain back.
4.Magnetic base with ON/Off switch.
5.Clamp hole: 8mm & 6.5mm (optional: hole 3/8" & 5/32" )

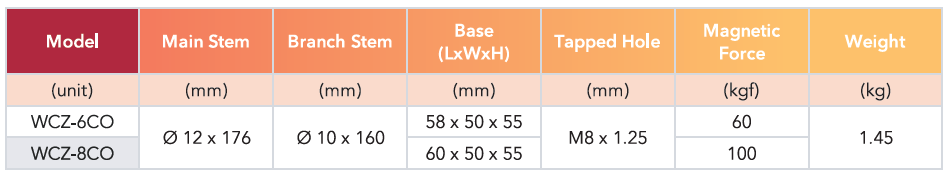

With Dual Use Clamp Hole
1.Branch stem with fine adjustment.
2.Magnetic base with ON/Off switch.
3.Clamp hole: 3/8 mm & 5/32" and 8 mm (when setting a ring at the hole 3/8" ) & 5/32" )

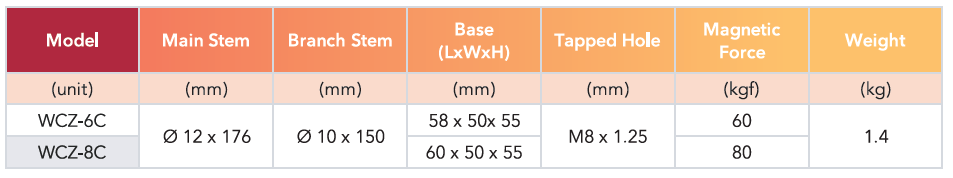

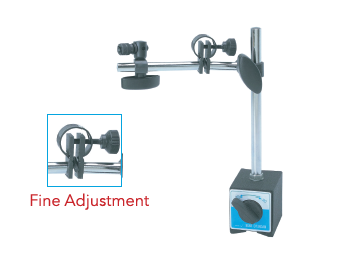

With Fine Adjustment
1.Branch stem with fine adjustment.
2.Clamp hole: 8mm & 6.5mm (optional: hole 3/8" & 5/32" )
3.For dial indicators with lug back or plain back.
4.Magnetic base with ON/Off switch.
