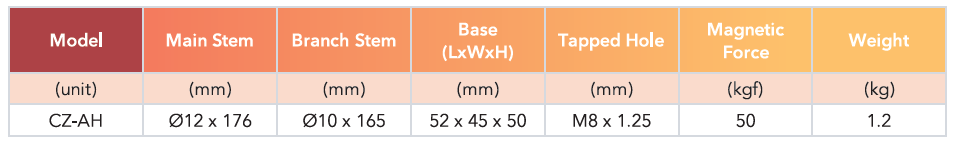

Magnetic Indicator Stands-Magnetic Stand
1.Clamp hole 3/8" & 5/32" and 8mm (when set a ring at the hole 3/8") & 5/32".
2.For dial indicators with lug back or plain back.
3.Magnetic base with "On/Off" push button.

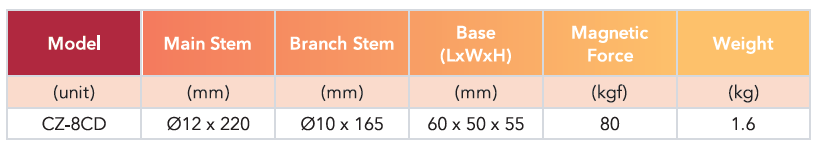

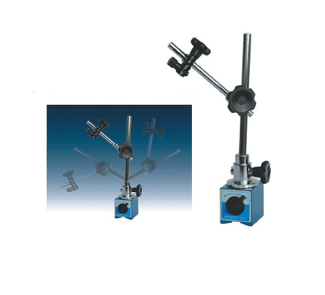

Magnetic Indicator Stands-With Universal Stem
1. The angle of the main stem can be changed.
2. Clamp hole 3/8" & 5/32" and 8 mm (when set a ring at the hole 3/8") & 5/32".
3. For dial indicators with lug back or plain back.
4. Magnetic base with "On/Off" push button.

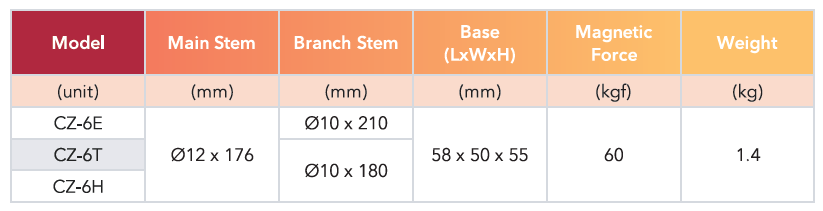

Magnetic Indicator Stands-With Dovetail Groove
1.The clamp hole is on the top of branch stem.
2.Dovetail groove for clamping a dial test indicator.
3.Clamp hole: 8mm (optional: hole 3/8")
4.Magnetic base with "On/Off" switch.
5.Tapped hole: M8 x 1.25mm

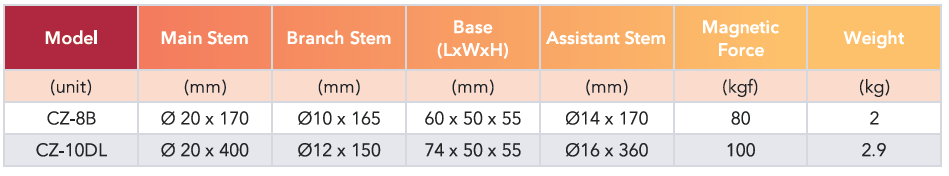

Magnetic Indicator Stands- Extra Stem Magnetic Stand Ⅰ
1.Extra stem, one main stem, one branch stem and one assistant stem.
2.Clamp hole: 8mm & 6.5mm (optional: hole 3/8" & 5/32")
3.For dial indicators with lug back or plain back.
4.Magnetic base with "On/Off" switch.
5.Tapped hole: M8 x 1.25mm

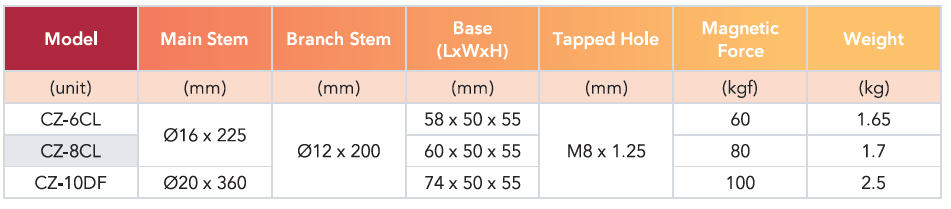

Magnetic Indicator Stands- Extra Stem Magnetic Stand Ⅱ
1.Extra stem.
2.Clamp hole: 8 mm & 6.5 mm (optional: hole 3/8" & 5/32")
3.For dial indicators with lug back or plain back.
4.Magnetic base with "On/Off" switch.

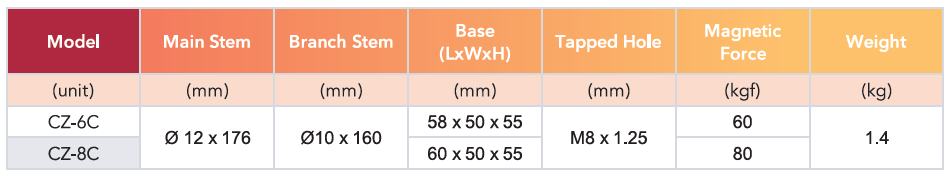

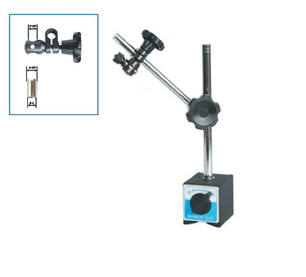

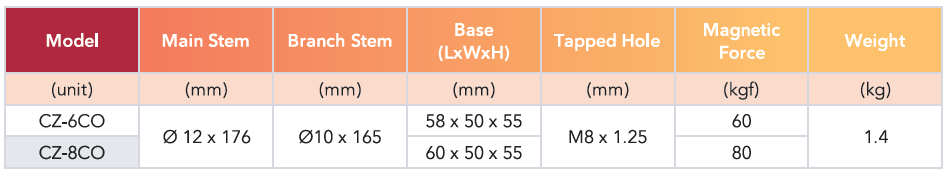

Magnetic Indicator Stands- With Dual Use Clamp Hole
1.Clamp hole: 3/8" & 5/32" and 8mm (when set a ring at the hole 3/8") & 5/32"
2.For dial indicators with lug back or plain back.
3.Magnetic base with "On/Off" switch.
Magnetic Indicator Stands- Basic type
1.Basic type
2.Clamp hole: 8mm & 6.5mm (optional: hole 3/8" & 5/32")
3.For dial indicators with lug back or plain back
4.Magnetic base with "On/Off" switch

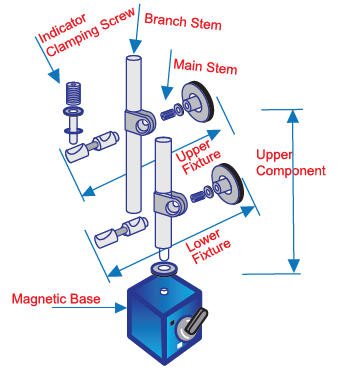

Magnetic Indication Stand - Features
Application:
These magnetic indicator stands are widely used as tool holders when measuring dimensions of machined workpieces (detecting errors and deviation) using a dial indicator on machine tools or iron surface plate for measurement by comparison.
Features:
A wide variety of models, small to large, and with diversified additional functions, are available to suit conditions of measuring place.
A powerful magnet and strong clamping force ensure consistent, highly accelerate measurement.
