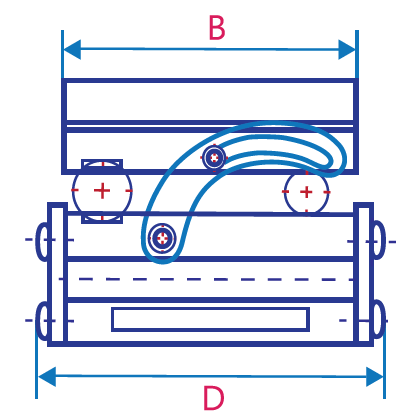

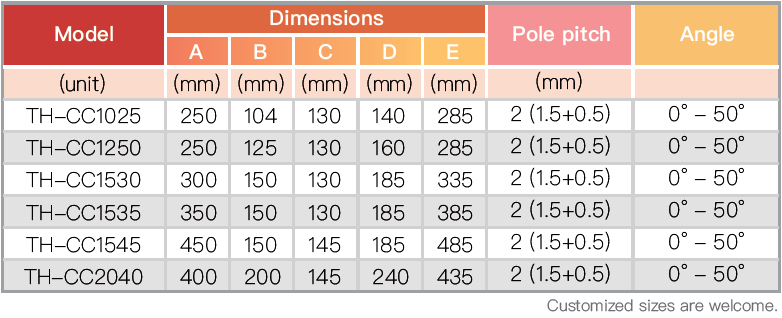

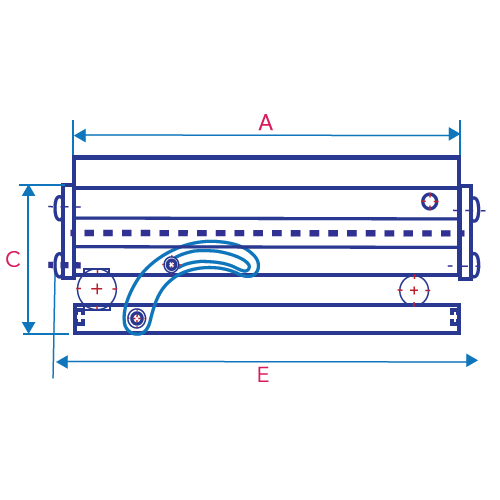

Double Sine Permanent Magnetic Chuck

Use:
Flat type for a wide range of uses. Ideal for high-accuracy grinding operation. Suit for grinding EDM for angle process and high precision angle grinding on a mold grinding machine. Wide range of workpieces can be used by tilting in length, breadth or compound angle.

Technical Characteristics:
1. Use high-grade magnets, high holding power, less remaining magnetism. Micro pole pitch can attract small parts.
2. Positive locking at all angles without any distortion.
3. The large effective area is provided for machining workpieces.
4. Constructed of hardened alloy tool steel.
5. Double way sine plate, can grind tow way angle at the same time. Surface keep the same accuracy when turning on and off.
6. Angle precision: 0.01/100 mm.

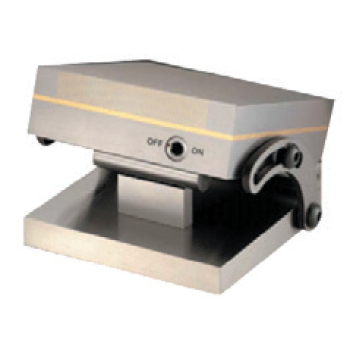

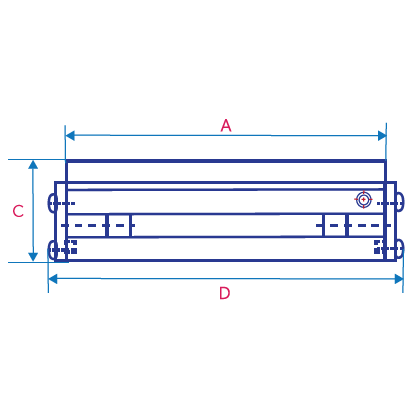

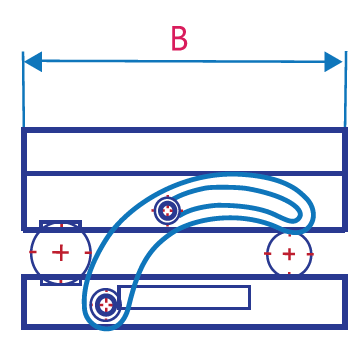

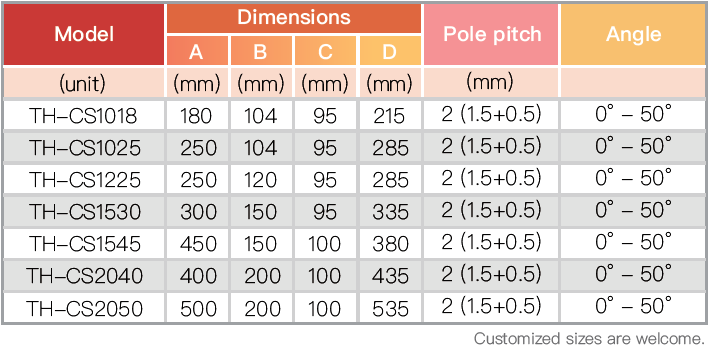

Sine Permanent Magnetic Chuck

Use:
1. Flat type for a wide range of uses. Ideal for high-accuracy grinding operation.
2. Process through special processing, make the adjustment of the precision is higher.
3. Using high-quality material, strong suction, less remaining magnetism and uniform magnetic field distribution.
4. Surface keep the same accuracy when turning on and off.
5. Magnetic pole arrangement is only 1.5 mm, capable of holding small parts.

Technical Characteristics:
1. Large effective area is provided for machining the workpieces.
2. Positive locking at all angles without any distortion.
3. Constructed of hardened alloy tool steel.
4. Angle precision 0.07/100 mm. Low height offers more wheel clearance.
