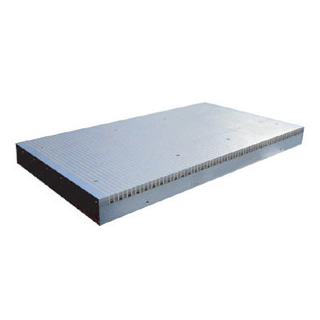

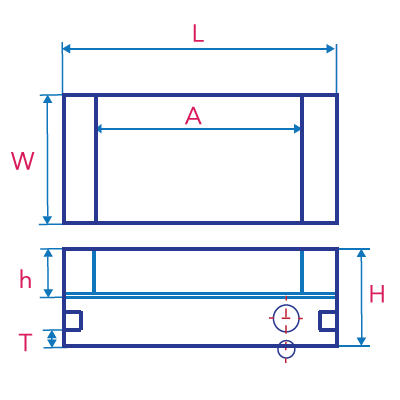

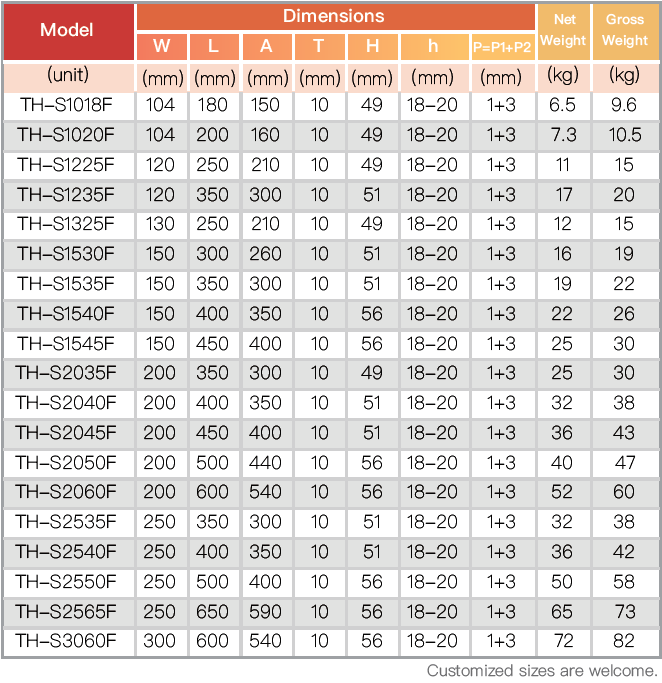

Fine Pole Permanent Magnetic Chuck

Use:
Suitable for grinding EDM application, best for medium size workpieces.

Technical Characteristics:
1. Strong magnetic force and less remaining magnetism. Coolant and waterproof structure.
2. Parallelism, flatness and squareness: 0.005 mm/100 mm.

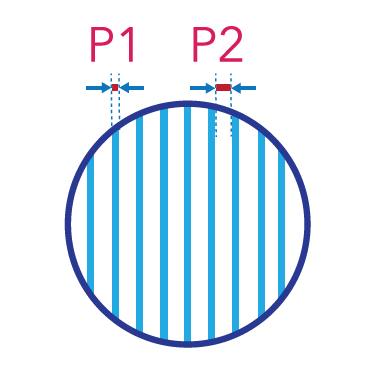

3. Pole pitch: steel 3 mm, brass 1 mm.
4. Nominal holding force: 120 N/cm² (JIS).
5. Pole plate wearing limit: 5 mm.
6. Magnetic field height: 8 mm.

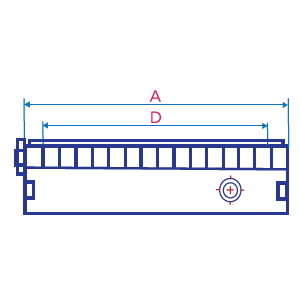

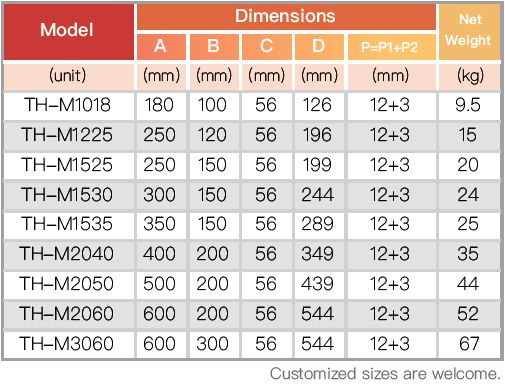

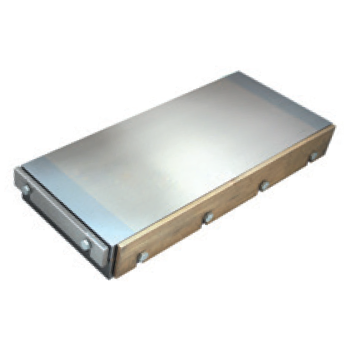

Powerful Permanent Magnetic Chuck

With transverse pole pitch P=15 mm, 3 mm brass /12 mm steel,neodymium magnets enhanced huge holding force.

Use:
Heavy machining, such as milling and planing. The dense and concentrated magnetic field enables it to be used for small, medium and large workpieces, including those with rough or uneven surface. The magnetic field is without any stray field, preventing magnetization of tools.

Technical Characteristics:
1. Exceptionally strong neodymium magnetic system. ON-OFF control by means of a hand lever. In the OFF position, a weak opposing field eases the removal of the workpiece. The magnets are equipped with a longitudinal and transverse stopper.
2. Nominal holding force: 250 N/cm² (JIS).
3. Magnetic field height: 12 mm.
4. Pole plate wearing limit: 5 mm.
5. Pole pitch 15+4 mm can be produced.

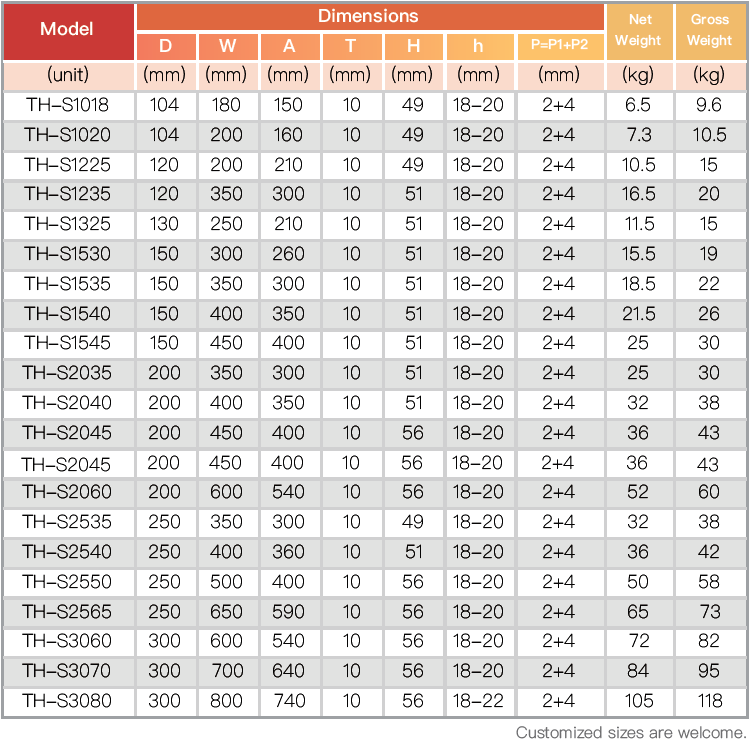

Standard Pole Permanent Magnetic Chuck

Use:
Suitable for grinding and light milling application. Best for larger and thicker workpieces.

Technical Characteristics:
1. Extra strong magnetic force and less remaining magnetism.
2. Collant and waterproof structure.
3. Parallelism, flatness and squareness: 0.005 mm / 100 mm.
4. Pole pitch: steel 4 mm, brass: 2 mm.
5. Nominal holding force: 120 N/cm² (JIS).
6. Pole plate wearing limit: 5 mm.
7. Magnetic field height: 8 mm.

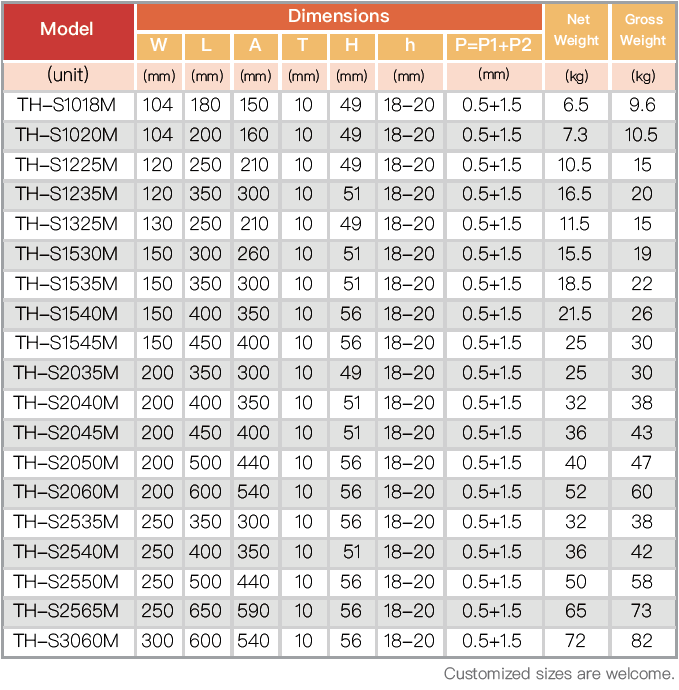

Micro Pole Permanent Magnetic Chuck

Use:
Suitable for grinding EDM application, best for medium size workpieces.

Technical Characteristics:
1. Strong magnetic force and less remaining magnetism. Coolant and waterproof structure.
2. Parallelism, flatness and squareness: 0.005 mm/100 mm.
3. Pole pitch: steel 1.5mm, brass 0.5mm.
4. Nominal holding force: 120 N/cm² (JIS).
5. Pole plate wearing limit: 5 mm.
6. Magnetic field height: 8 mm.
