Magnetic Holder Base

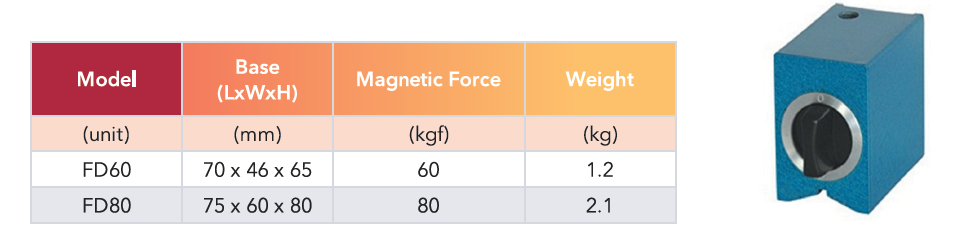

Din Type Magnetic Base

.Circle style switch.
.Powerful magnetic force.

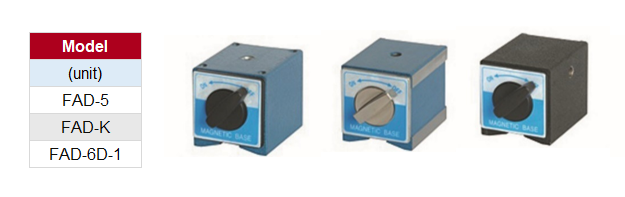

Magnetic Base

. Either a V-slit flat attractive is provided. The face opposite to the change over switch face is also attractive.
. Screw holes are provided, additional machining is possible (It can according to your wish.)

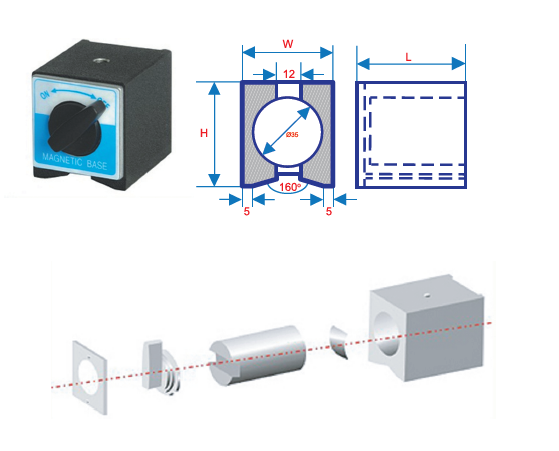

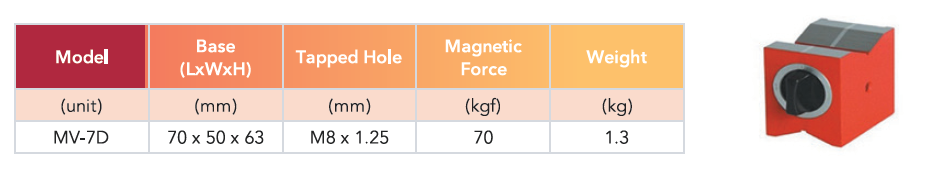

Double-V Type Magnetic Base

.Circle style switch.
.Either top V-groove and/or bottom V-groove attractive face is provided.
.The face opposite to the change over switch face is also attractive.
.The tapped hole is on the side face.

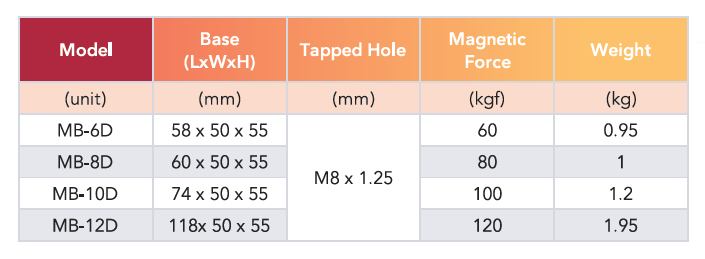

ON/OFF Type Magnetic Base

.With On/Off switch.
.The shadow material is used low carbon steel.
.The middle is aluminum alloy, die-casting forming.
.Different standard magnetic bases can be produced as requested.

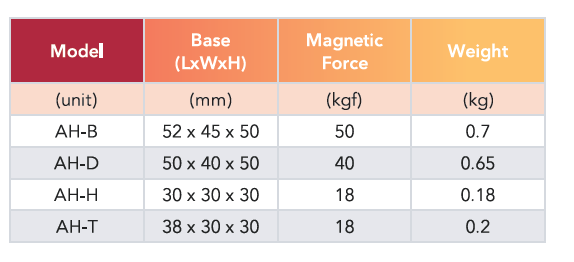

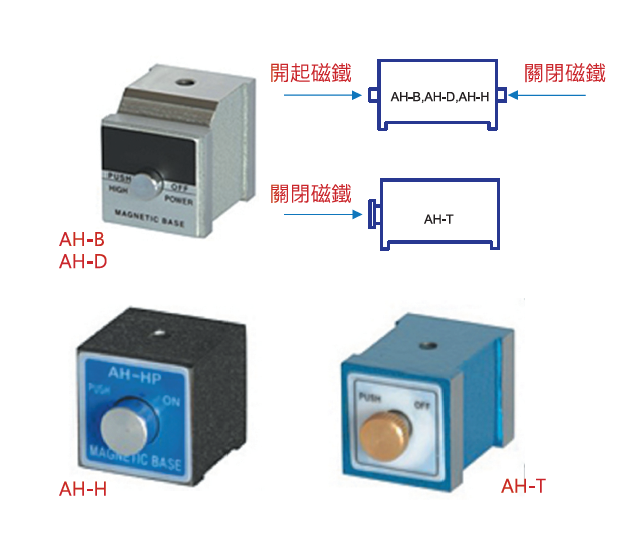

Push-Button Type Magnetic Base

.With On/Off push button.
.Powerful magnetic power.
.AH-B, AH-D, AH-H Type:
 The magnetic force "on" when pushed the button to one side.
 The magnetic force "off" when pushed the button to another side.
.AH-T Type:
 The magnetic force "on" is normal.
 The magnetic force "off" when pushed the button.
